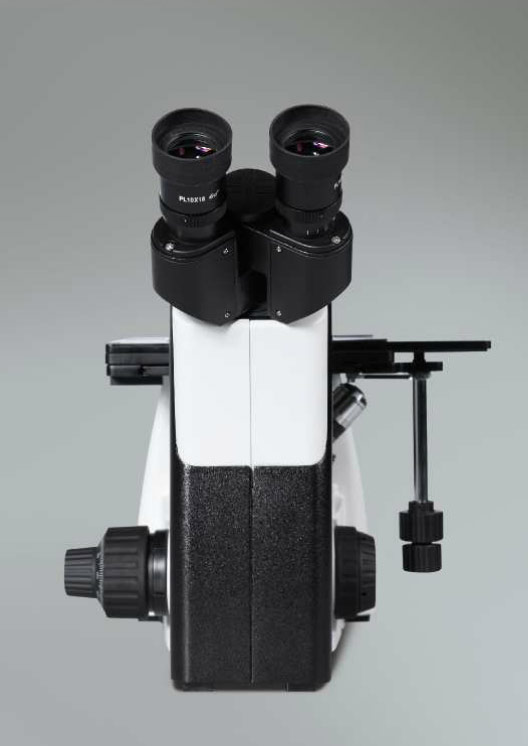

IE200M 금속현미경 특징
광학 시스템
- PL10x plan 접안렌즈와 고성능 금속 대물렌즈 채택
- 고해상도 고화질 이미지
- 편안한 관찰 시야
포커스 시스템
- 낮은 위치의 동축 포커스 시스템
- 기계식 스테이지, 두께: 회전 당 38mm, 정밀도 0.002mm, 크기 : 180mm x 155mm, 이동 범위 : 75mm x 40mm
비디오 & 사진 악세사리
- 전문 금속 이미지 분석 소프트웨어로 이미지를 수집하고 저장합니다.
접안 렌즈
| 접안렌즈 | PL10X/18 | PL10X/18R | WF15X/13 | WF15X/13 | WF20X/10 | WF20X/10R |
| 시야 | 18mm | 18mm | 13mm | 13mm | 10mm | 10mm |
대물 렌즈
| 배율 | 개구수 (N.A) | 작동 거리 (mm) | 커버 두께 (mm) | 적용 거리 (mm) |
| 5x | 0.13 | 15.5 | 0 | 195 |
| 10x | 0.25 | 8.7 | 0 | 195 |
| 20x | 0.40 | 8.8 | 0 | 195 |
| 50xs | 0.60 | 5.1 | 0 | 195 |
| 100xs | 0.80 | 2.0 | 0 | 195 |
IE200M 제품 사양
Optical system | Finity color corrected optical system |
Viewing head | Gemel trinocular，45°inclined，Diopter adjustment ±5 for each side，Interpupillary distance adjustable between：54-75mm，refract rate，binocular:trinocular =80%:20% |
Eyepiece | High eyepoint wide field plan eyepiece PL10X/18mm |
High eyepoint wide field eyepiece WF15X/13 | |
High eyepoint wide field eyepiece WF20X/10mm | |
Metallurgical objcetive | LWD plan achromatic metallurgical objective 5X，10X，20X，50X、100X |
Nosepiece | Reversed quadruple nosepiece |
Reversed quintuple nosepiece | |
Focusing adjustment | Low position coaxial coarse and fine adjustment. with tightness adjustment.Coarse adjustment range 38 mm；precision of fine adjustment:2um， |
stage | Three-ply mechanical stage，area 180mmX155mm，right hand low position control，Moving range:75mm×40mm; Metal stage plate，center hole dia.φ12mm |
Illumination system | Reflection Koehler illumination with iris diaphragm and centerable field diaphragm , wide-range voltage 90-240V ，6V/30W halogen bulb(single 3W LED option), with continuous intensity |
Polarizing kit | Polarizer and the analyzer can be removed from the optical path, the analyzer can be rotated 360 °. |
Photo accessories | Photo tube（with PK mount），photo eyepiece 3.2X |
Video accessories | CTV0.5X/1.0X |
software | specialized metallographic analysis software |

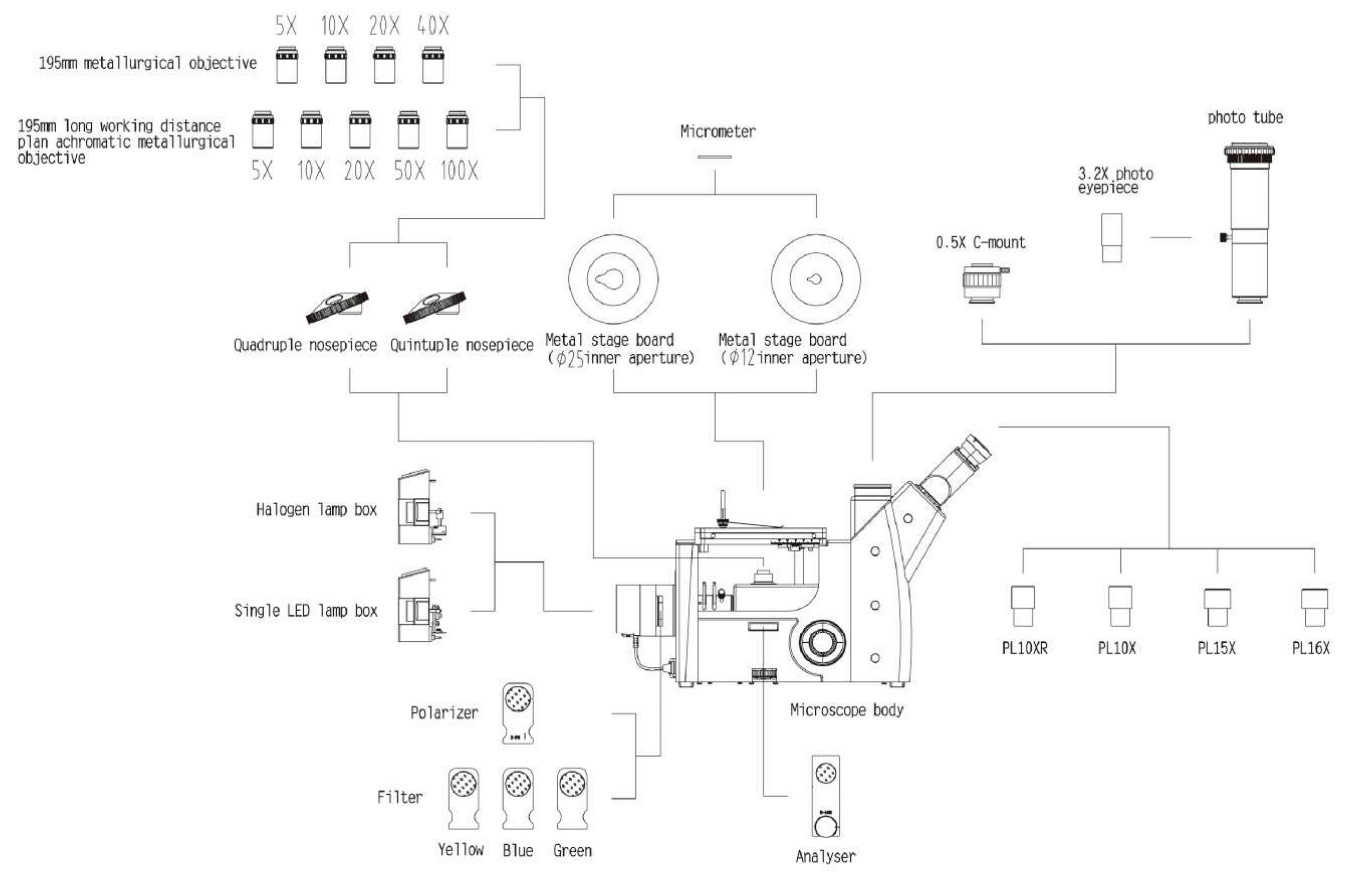

IE200M 시스템 구성도
